FUJI Car Elevator in Apartment

Installation of FUJI car elevator requires consideration of building structure, power systems, and space planning.

● Building load capacity: The elevator shaft base must support at least 5000kg (specific to elevator model). Recommended floor height is at least 2500mm.
● Power requirements: Typically requires 380V three-phase power, with a power rating of 10~15 kW. An independent circuit must be planned in advance.
● Space dimensions: Standard car elevator shaft size is 3000 (length) × 2200 (width) × 2400 (height) mm. A door opening of at least 2000mm in width must be reserved.
● Approval process: An installation application must be submitted to the local housing and construction department. Some countries also require fire safety inspections and special equipment licenses.

It is recommended to plan the elevator shaft during the architectural design phase to avoid high retrofitting costs later.

The load capacity of FUJI car elevators typically ranges from 2000 to 5000kg, accommodating most sedans, SUVs, and small vans.

● Sedans: A 2000~3000kg model is sufficient (e.g., Toyota Camry, Tesla Model 3).
● Large SUVs/MPVs: A model with 3500kg or more is recommended (e.g., Range Rover, Mercedes-Benz V-Class).
● Extra-long/wide vehicles: Custom elevator dimensions are required. For example, an extended Rolls-Royce may need a 4000 × 3000mm cabin.

If a customer has a special vehicle type (e.g., extended luxury car), vehicle dimensions and weight data must be provided for a customized solution.

FUJI car elevators use multiple safety technologies:

● Emergency braking system: Activates mechanical locking devices during power outages to prevent cabin slippage.
● Anti-fall protection: Equipped with speed sensors that trigger safety gear to clamp the guide rails in case of overspeed.
● Door interlock device: Ensures doors cannot open when the cabin is not fully docked.
● Remote monitoring: Some brands support IoT for real-time fault monitoring and early warnings.

It is recommended to perform monthly lubrication maintenance and annual safety component inspections (e.g., wire ropes, brakes) by a professional agency.

Yes.
FUJI car elevator offers highly customized services:

● Appearance: Cabin options include stainless steel, glass, or wood finishes to match the apartment's decor.
● Function expansions: License plate recognition, automatic parking guidance, or charging station interfaces can be added.
● Smart controls: Supports mobile app scheduling for lifting and face recognition activation.

Customization typically takes 2~3 weeks longer than standard models. Design details must be confirmed with the manufacturer in advance.

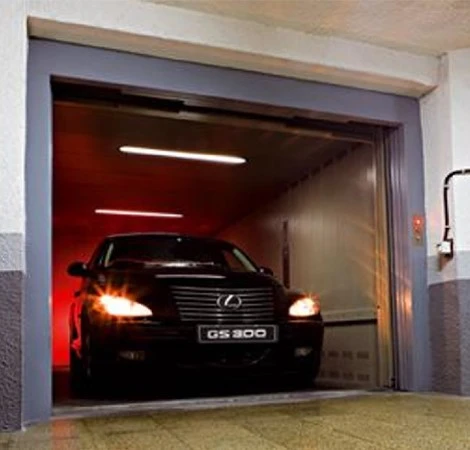

FUJI elevator uses low-noise technology to ensure operating sound levels ≤55 dB (equivalent to indoor conversation volume):

● Silent variable-frequency motors paired with shock-absorbing guide rails reduce mechanical friction noise.
● Sound-absorbing composite materials are embedded in the cabin walls to block high-frequency motor vibrations.
● Leveling accuracy error ≤2mm to prevent collision noises when vehicles enter or exit.
● Time-segmented silent mode available (e.g., automatic speed reduction to 0.3m/s at night).
