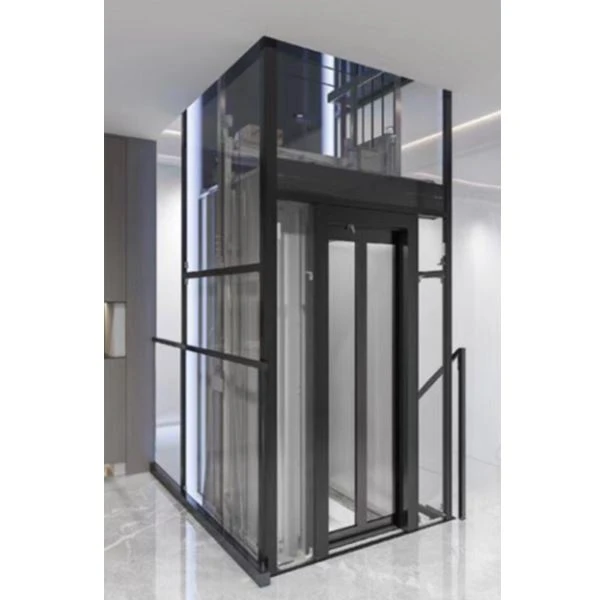

FUJI Glass Shaft Elevator

• All our glass elevators use modular pre-assembly. 80% of work is done before factory delivery.

• Every part has a unique ID, and we provide multi-language guides.

• Two experienced workers finish full installation in 3-5 days. No special heavy equipment needed.

• For old building projects, we have standard machine-room-less design. It saves 15% top space vs traditional elevators.

• Minimum pit depth is only 300mm. If you don't have a pre-built pit, we offer a raised base-no extra digging needed.

• We also provide free remote installation help. Even first-time teams can work quickly.

• Our outdoor models have multiple protective designs. All metal frames are stainless steel or aluminum alloy. It has C5-M corrosion resistance. They stay rust-free for over 20 years in salty coastal areas.

• Low-E coating blocks 99% UV rays. Elevator can work from -40℃ to 85℃. It fits both Nordic extreme cold and Middle Eastern desert heat.

• The structure passed 12-grade typhoon testing-no deformation or shaking. It has IP54 waterproofing, all electrical connections are sealed. No short circuits in heavy rain.

• You can add optional heated defogging glass. It stays clear in high humidity or big temperature changes, for a clear view all the time.

FUJI elevators are fully modular, and support full customization. It can perfectly match any building style.

• Size: FUJI elevator can custom shaft size from 1000×1000mm to 3000×4000mm. Mini overhead is 2300mm.Mini pit depth 300mm. It fits old home renovations and new commercial builds equally well.

• Glass options: clear laminated and low-E UV-blocking etc. We can also print custom patterns.

• Shaft frame options: Multiple finishes including brushed stainless steel, mirrored stainless steel, titanium gold, rose gold, black titanium, etc.

• Car interior options: Solid wood, marble, leather wrapping are all available. We can even match frame color to your building's exterior.

FUJI glass elevators have 3 levels of safety guarantee:

• Structural safety: Besides shatter-resistant glass, frame uses high-strength aerospace aluminum alloy. It holds 5 tons static load. It is enough for buildings up to 10 stories.

• Electrical & mechanical safety: Standard emergency backup power for outages. It auto-stops at nearest floor and opens doors when power cuts. It also has 12 other safety features: overspeed protection, infrared door anti-pinch, emergency call, manual pressure relief, etc. It meets all global safety rules.

• Full quality control: We check quality at every step. We offer global warranty, 5-year coverage for core parts. So far, over 20,000 units sold worldwide and zero major safety accidents.

FUJI elevator has full size options for all scenarios, great adaptability:

• For 2-3 story home use: FUJI smallest compact machine-room-less model only needs 1200mm×1200mm outer shaft, fits 2-3 people. It only needs 100mm pit depth and 2600mm top height.

• Even for finished old homes, no large demolition needed. We have a built-in self-supporting shaft-no extra concrete required. Just place and fix, ready to use.

• For commercial use: We offer shafts up to 2000mm×1800mm, max load 1600kg. Fits buildings up to 10 stories, including malls, offices and villas.

Glass shaft elevators have clear advantages over traditional closed elevators:

• Visual & space: Transparent shaft brings in maximum natural light. It doesn't feel cramped like traditional elevators, and makes space feel bigger. Even small shafts won't be dead space, and the sightseeing feature becomes a building highlight.

• Installation: Our self-supporting shaft needs no extra concrete. Installation is 50% faster than traditional elevators, with little damage to existing buildings. Perfect for old building renovations.

• Energy efficiency: Standard permanent magnet synchronous traction uses 30% less energy than traditional elevators. A 2-story home model uses about as much energy daily as a regular home fridge.
