FUJI Machine Room Lift
A lift is a vertical transportation vehicle with a car used to carry passengers or goods. Its operating speed can be divided into low-speed, high-speed, high-speed, and ultra high speed elevators. Machine room lift is a common type of lift, characterized by having a dedicated machine room to install lift control systems and traction machines and other equipment.
What kind of lift is considered a machine room lift?

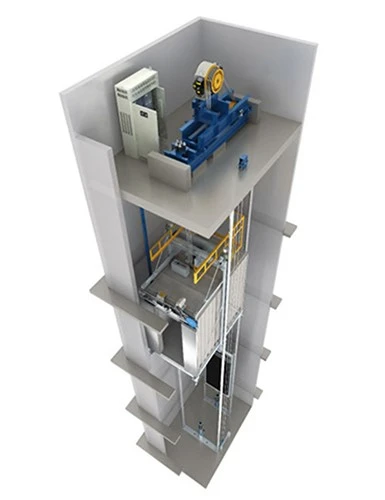

The machine room lift is a traditional lift, with a machine room on the roof that houses components such as the main unit and control cabinet. Machine room lift is divided into large machine room lift and small machine room lift.
The lift machine room is usually located in an independent space at the top of the lift shaft. The power system, and control system of the lift are installed in the computer room. The main key components involved in lifts include traction machines, control cabinets, main power boxes, speed limiter devices, and other equipment.
1. Do you know the advantages and disadvantages of a machine room lift?
Advantages:
1. Higher power: Machine room lift can accommodate larger and heavier loads because their motor power has increased. This makes them suitable for high-rise buildings, hotels, and other commercial structures.
2. More control: The independent machine room provides more convenient access for maintenance and repair, and the control panel can be located outside the lift car for better control and monitoring of the system.
Disadvantages:
1. More space: The computer room requires additional space in the building, which may be a challenge for smaller buildings or buildings with limited space.
2. More energy consumption: The additional space required for the computer room will result in increased energy consumption for cooling and ventilation.
2. What FUJI lift can provide with load capacity and speed machine room lift?
The load capacity has a certain impact on the operating speed of the lift. Normally, lifts are affected by the load capacity during operation, resulting in a certain degree of speed variation.
FUJI lift company provides machine room lift with a load range of 450kg-2000kg and a speed range of 1.0m/s-10.0m/s. You can communicate specific needs with the sales team.

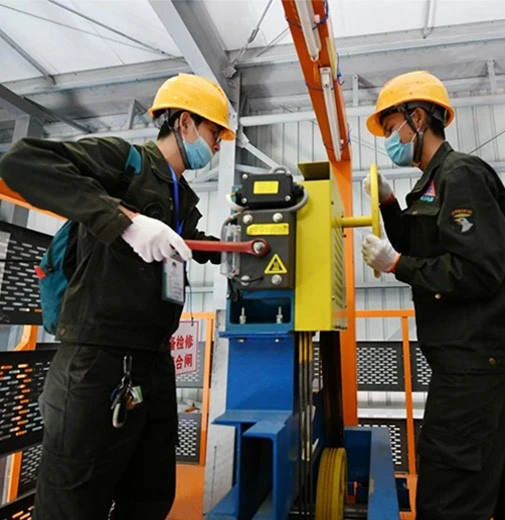

3. What should be paid attention to in the daily maintenance of machine room lift?
Regularly inspect the operating components of the lift, refuel, remove dust and debris, and calibrate safety devices. The purpose is to eliminate possible defects through inspection and reduce the occurrence of lift defects.
For lifts with machine rooms, compared to lifts without machine rooms, it is necessary to pay attention to environmental protection testing of the machine room.
Check whether the machine room passages are unobstructed, there is no accumulation of debris, and whether there is fixed lighting. Check if the cooling and ventilation equipment such as air conditioning fans are in good condition.

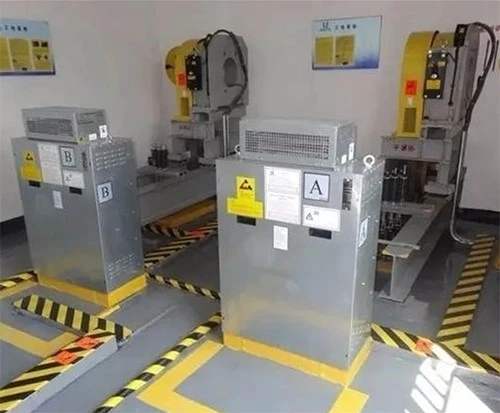

4. What are the special precautions to pay attention to when installing a machine room lift?
When installing a machine room lift, attention should be paid to the layout of the equipment room.Such as the position of pipelines, to prevent water leakage into the machine room, which may cause some electrical components to be burned.
Pay attention to the size of the power supply capacity to avoid a power supply system failure caused by a too small capacity, which may result in the lift being unable to operate safely.
Many machine room lift are located on the top floor of buildings, and ventilation needs to be ensured for the machine rooms. Pay attention to the sufficient area of the lift machine room and shaft.
5. How much does it cost to buy a machine room lift from FUJI lift company?
The factors affecting the price of machine room lift includes lift brand, lift decoration, lift load and speed, lift height, installation location, and so on.
Purchase a FUJI machine room passenger lift, with a factory price generally ranging from 9000-20000 USD. The price for machine room freight lift is slightly higher, around 11000-30000 USD.
Of course, this is also determined by your needs.
