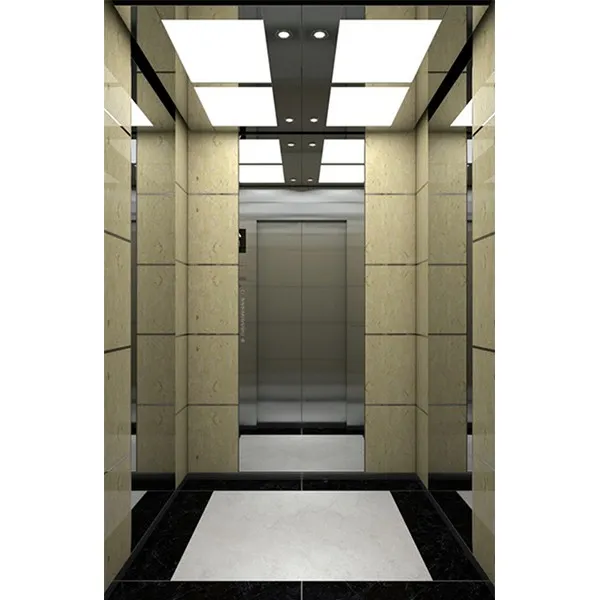

FUJI Machine Roomless Lift
In recent decades, the development of the lift industry has shifted from machine room lift to machine roomless lift. Machine roomless lift uses frequency conversion speed regulation microcomputer control, which differs greatly in structure from traditional vertical lift. In order to save space, the control cabinet, main unit, speed limiter and other equipment that were previously installed in the machine room above the shaft have been changed to be installed in the shaft, eliminating the dedicated machine room setting. This effectively improves the utilization rate of building area while reducing construction costs.
What is a machine roomless lift?
Machine roomless lift refers to lifts that do not require buildings to provide enclosed specialized machine rooms for installing lift drive hosts, control cabinets, speed limiters, and other equipment.
The machine roomless lift is not a simple partial improvement of traditional lifts in the past, but a significant change in lift technology.
1. What are the advantages and disadvantages to pay attention to when choosing a machine roomless lift?
Advantages:
1. Space saving: Because the machine roomless lift only requires a maintenance platform below the main unit in the shaft, without the need for a separate machine room.
2. Save construction costs: As machine roomless lift does not have machine room, for homeowners, this can undoubtedly save a lot of construction costs.
3. Help reduce the height of buildings: Some antique style buildings must solve lift problems within a certain height to ensure the overall design effect of the building or to meet the requirements of the roof, and the absence of a machine room can help solve this problem.
Disadvantages:
1. Loud noise: Because the machine roomless lift adopts a steel connection, and the noise usually needs to be digested in the shaft, the sound will be amplified.
2. High temperature: The main heating components of machine roomless lift is usually installed in the shaft, so there are generally no corresponding cooling and exhaust facilities, resulting in high temperatures.
2. What are the specifications of machine roomless lift produced by FUJI Lift?
The load capacity of machine roomless lift for passengers is 450-2000kg, with speeds of 1.0,1.5,1.75,2.0,2.5m/s. The shaft size is 2050*1850mm, 2250*1900, up to 2900*2600, etc. The larger the load capacity, the larger the shaft size requirement.
The load capacity of machine roomless lift for cargo is 1000-5000kg, with speeds of 0.5, 1.0, 1.5, 2.0m/s, and shaft sizes ranging from 2250*2200, 3150*2660, to 4250*3800. Due to the large size of the car, 4-Panel doors are commonly used.
All lifts produced by FUJI Lift can be customized according to customer needs.
3. What are the key points to pay attention to when installing a machine roomless lift?
The installation of machine roomless lift requires full consideration of a series of issues such as the placement of the machine room, lightning protection measures, and safety protection devices. Only by doing all of these aspects in place can we ensure the installation quality and safety of machine roomless lift.
Before installing the machine roomless lift, it is necessary to first determine the location and size of the machine room. During the installation of lifts, it is necessary to set up relevant safety protection devices, including electrical isolation, speed limiters, safety buckles, lift car door locks, etc., to ensure the stability and safety of the lift during operation.
After the installation of the machine roomless lift is completed, system testing and trial operation are also required. The specific content includes: traction machine testing, safety device testing, electrical system testing, etc.
4. What are the common problems in the inspection of machine roomless lift?
The common problems found in the inspection of machine roomless lift include narrow installation space, mismatch between the structure design of the drive host and the shaft, unreasonable locking position of the maintenance operation platform, excessive spacing between guide rail brackets, high lift operating noise, low motor efficiency, and multiple hidden dangers in emergency rescue.
These issues require special attention during lift acceptance.
5. How much does it cost to purchase a machine roomless lift?
The price of machine roomless lift is influenced by various factors, such as the brand, size, configuration, technical characteristics, and installation environment of the lift.
Generally speaking, the price range for machine roomless lift is around 8000 to 20000 USD, and the specific cost depends on the situation. High end customized lifts or lifts with special design and intelligent functions may have higher prices.
The machine roomless lift provided by FUJI Lift not only have good quality, but also very competitive prices, and have a very good reputation in the industry.
